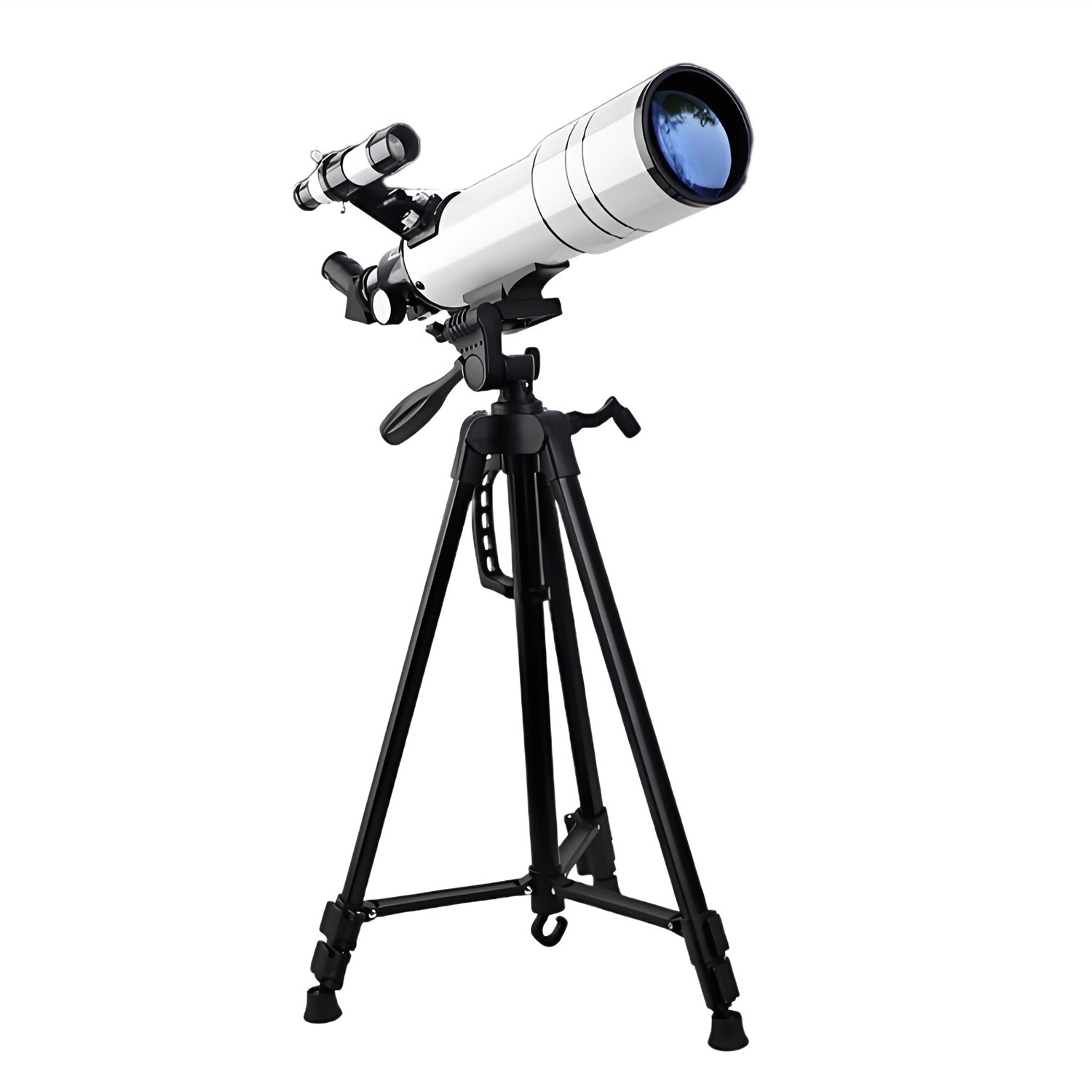

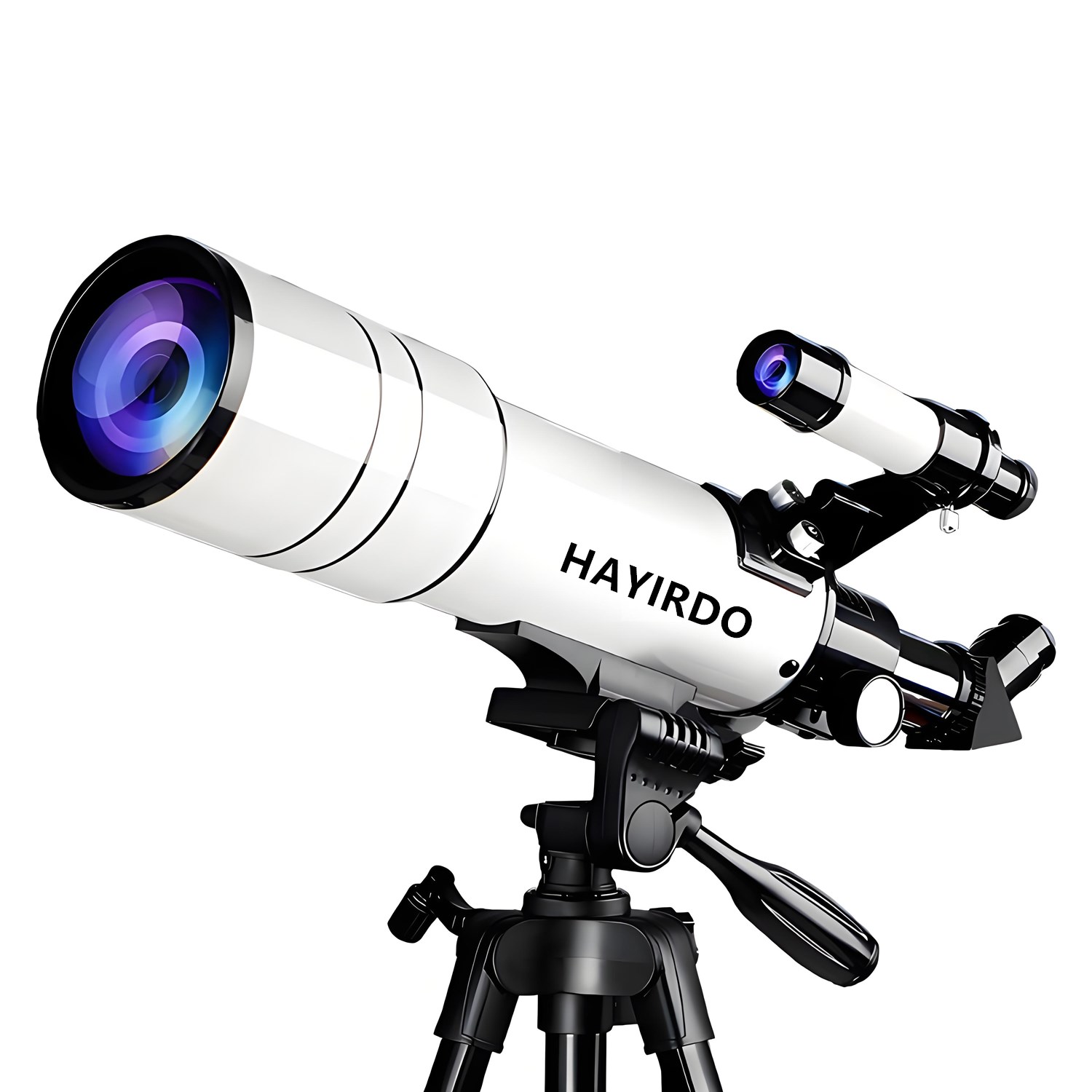

F40070M Stargazer Moongazer HD Night Vision Binoculars Astronomical Telescopes

Brand: HAYIRDO
Model：F40070M
Product Type: General Telescope
Overall Structure: Refracting Astronomical Telescope
Structure: monocular telescope
Applicable age: adults and children
Objective lens diameter: 70mm
Eyepiece diameter: H6mm (50x), H20mm (15x), F12 wide-angle eyepiece (30x)
Focal length: 400mm
Zenith lens: 45-degree orthographic zenith lens
Coating: FMC multi-layer coating
Optical structure: refractive
Focusing mode: center focusing
Professional grade: Entry level
Whether zoom: zoom
Product Size: 24*13*7.5(in)
Product weight: 2.2kg

How to use.
1, the support feet pull apart, the telescope tube to the yoke, use the set screw to lock the mirror.
2、Insert the reflector into the focusing cylinder and fix it with the corresponding screw.
3、Mount the eyepiece on the reflector and fix it with the corresponding screw.
4、If you wish to magnify with the 1.5X forward mirror, mount it between the eyepiece and the barrel so that you can view celestial objects.
5,
Eyepiece H6mm magnification 66.6X, with 5X doubler magnification 333.3X.
Eyepiece H20mm magnification 20X, with 5X magnification 100X.
Eyepiece F12mm magnification 33.3X, with 5X magnifier magnification 166.6X.

Note:Please do not observe the sun directly with the naked eye, remember to use a color filter or it will hurt your eyes.
