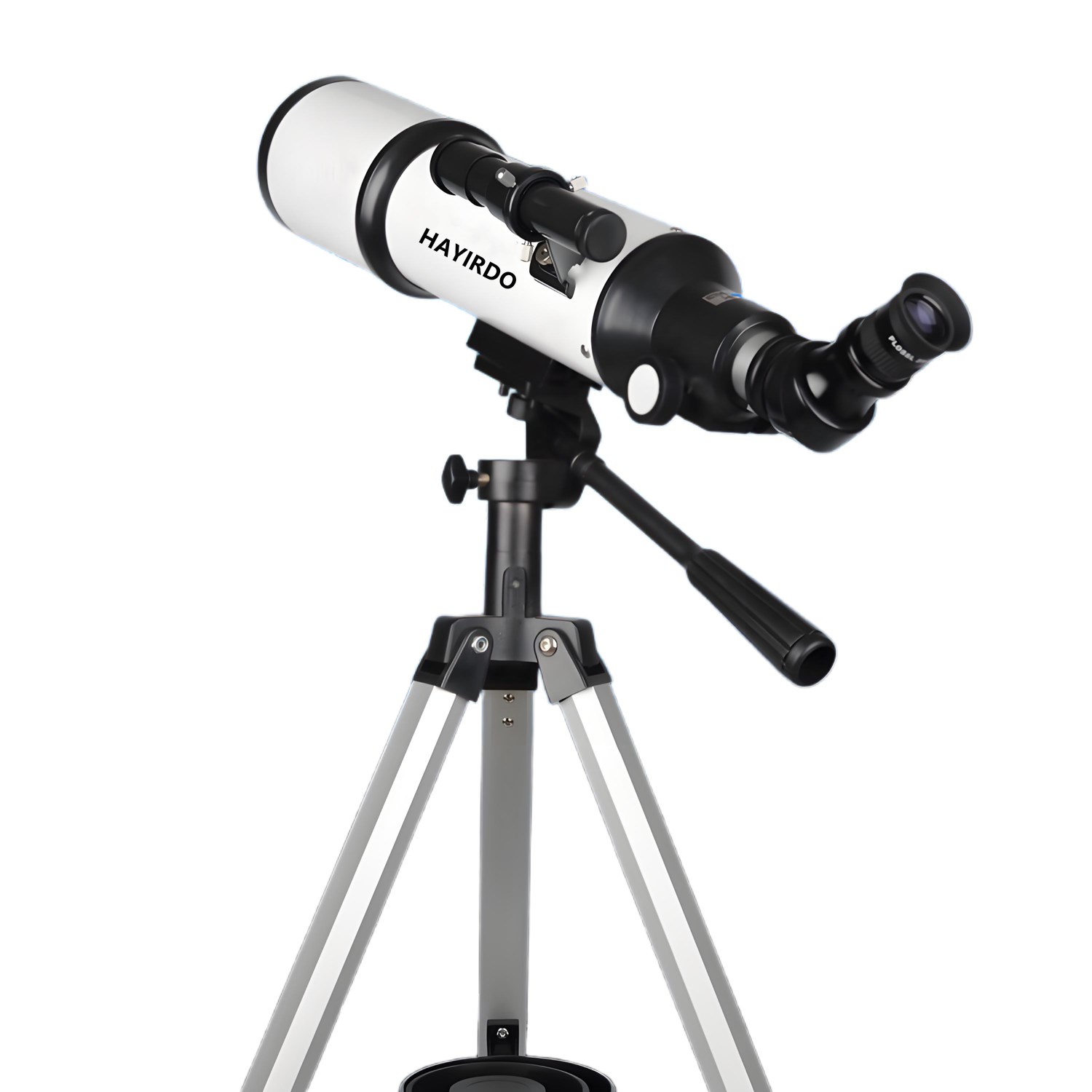

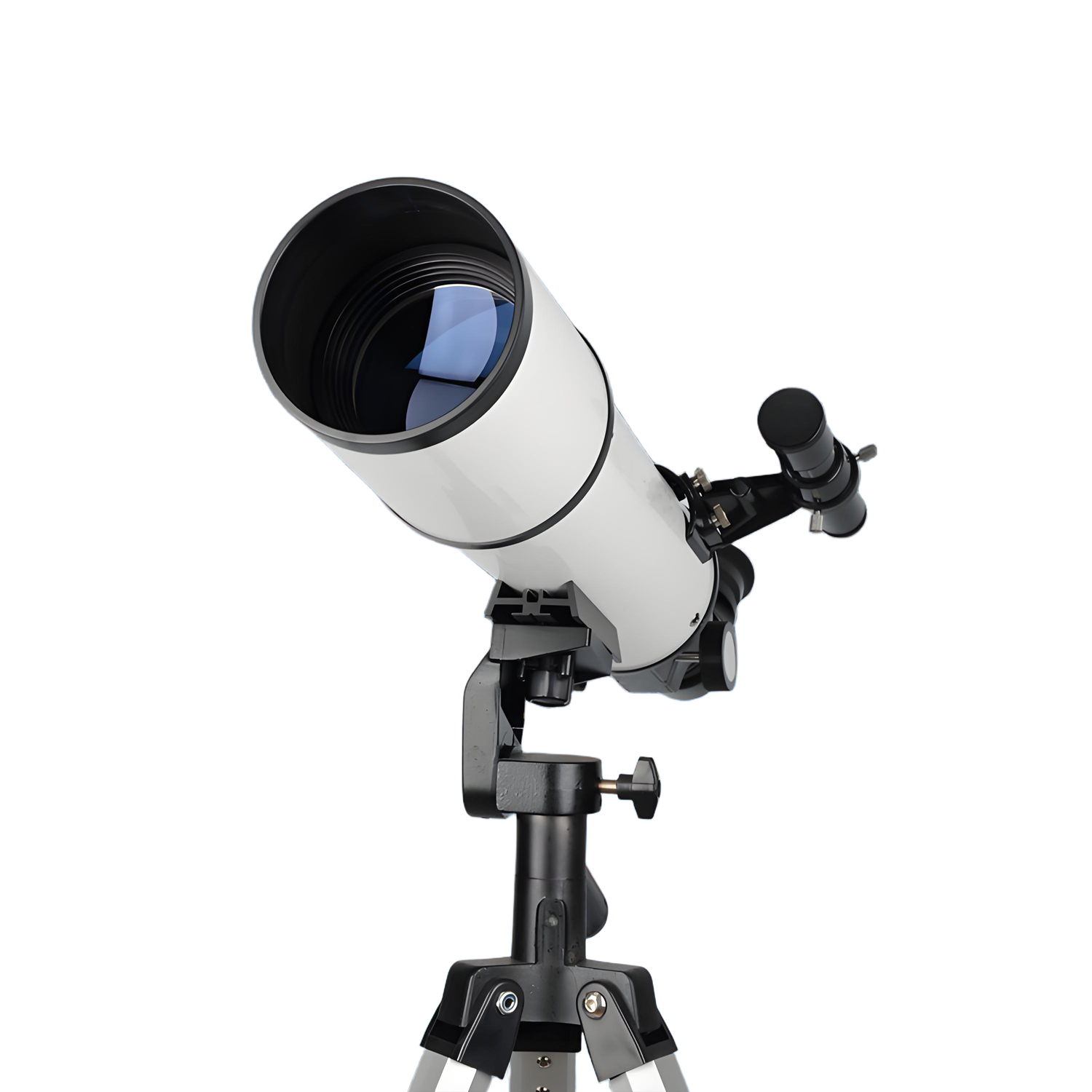

F50080M Hd High Definition Night Vision Monocular Binoculars Stargazing Astronomical Telescopes

Brand：HAYIRDO
Model：F50080M-35
Product Type: General Telescope
Overall Structure: Refracting Astronomical Telescope
Structure: monocular telescope
Applicable Age: Adult
Objective lens diameter: 80mm
Eyepiece Diameter: 10mm, 20mm
Focal length: 500mm
Zenith lens: 45 degrees positive image zenith lens
Instrument magnification: 20X, 50X, 60X, 150X
Multiplier: 3x
Star finder: 5×24
Optical Coating: Transparency Enhancing Coating
Optical system: refractive
Lens Body Material: Metal
Lens Material: Optical Glass Lens
Bracket mounting type: floor stand type
Product size: 23*5.1*8.5(in)
Product weight: 2.6kg

Using method.

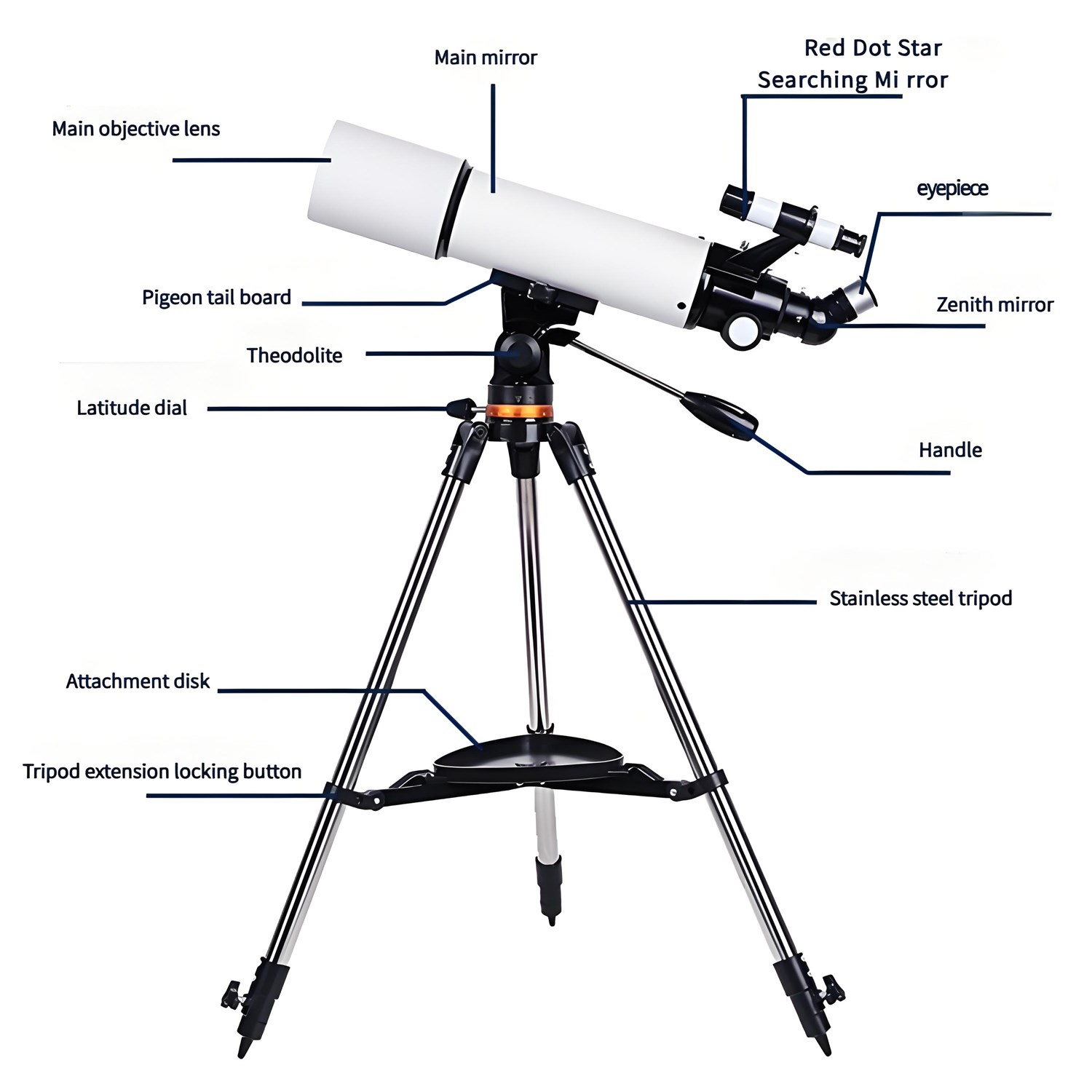

1, Brace feet pull apart, mount the telescope tube to the yoke, and lock the mirror with the set screw.
2、Insert the reflector into the focusing cylinder and fix it with the corresponding screw.
3、Mount the eyepiece on the reflector and fix it with the corresponding screw.
4、If you wish to magnify with the 1.5X forward mirror, install it between the eyepiece and the barrel so that you can watch the celestial bodies.
5、Eyepiece
Such as: focal length of 500mm with H6mm eyepiece is 83 times the magnification, with 1.5 times forward mirror (magnifying glass) magnification of 125 times, with 3 times forward mirror (magnifying glass) magnification of 250 times.
If the focal length is 500mm with H10mm eyepiece, the magnification is 50 times, 75 times with 1.5 times forward lens (intensifier), and 150 times with 3 times forward lens (intensifier).
For example, if the focal length is 500mm with H20mm eyepiece, the magnification is 25 times, with 1.5 times forward lens (magnifying lens) the magnification is 38 times, with 3 times forward lens (magnifying lens) the magnification is 75 times.
Such as: focal length of 500mm with H25mm eyepiece is 20 times magnification, with 1.5 times forward lens (magnifying lens) magnification 30 times, with 3 times forward lens (magnifying lens) magnification 60 times.

Note:Please don’t observe the sun directly with naked eyes, remember to use color filter or it will hurt your eyes.
